How to control servo motors with Arduino

How to control servo motors with Arduino

In this tutorial, you will learn how servo motors work and how to control them with Arduino. I have included wiring diagrams and several example codes!

Servo motors are often used in robotics projects but you can also find them in RC cars, planes, etc. They are very useful when you need precise position control and/or high torque.

In the first part of this article, we will look at the inner workings of a servo and what type of control signal it uses. I also explain what the differences between a standard and a continuous servo are. Next, I will show you how to connect a servo motor to the Arduino.

With the first code example, you can control both the position as well as the speed of the servo motor. After that, we will look into controlling a servo with a potentiometer and how you can modify the code to control multiple servo motors at the same time. Lastly, at the end of this article, you can find the specifications and dimensions of some of the most popular servo motors on the market.

If you would like to learn more about other types of motors, check out the articles below:

Recommended articles

I also have an article on How To Control Servo Motors using ESP32 if you want to work with an ESP32 microcontroller instead.

Supplies

Hardware components

SG90 micro servo× 1Amazon
MG996R high-torque servo× 1Amazon
Arduino Uno Rev3× 1Amazon
Jumper wires× 15Amazon
Breadboard× 1Amazon
10 kΩ potentiometer (breadboard type)× 1Amazon
USB cable type A/B× 1Amazon
5V power supply (optional)× 1Amazon

Software

Arduino IDEArduino IDE

Makerguides.com is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to products on Amazon.com. As an Amazon Associate we earn from qualifying purchases.

How does a servo motor work?

A standard hobby servo typically consists of a small electric motor, a potentiometer, control electronics, and a gearbox. The position of the output shaft is constantly measured by the internal potentiometer and compared with the target position set by the controller (e.g. the Arduino).

According to the error, the control electronics adjust the actual position of the output shaft so that it matches the target position. This is known as a closed-loop control system.

Schematic of an RC servo motor (Hwang et al. 2018)

The gearbox decreases the speed of the motor, which increases the torque at the output shaft. The maximum speed of the output shaft is usually around 60 RPM.

Servo control

Servo motors are controlled by sending a PWM (pulse-width modulation) signal to the signal line of the servo. The width of the pulses determines the position of the output shaft. When you send the servo a signal with a pulse width of 1.5 milliseconds (ms), the servo will move to the neutral position (90 degrees). The min (0 degrees) and max (180 degrees) position typically correspond to a pulse width of 1 ms and 2 ms respectively. Note this can vary slightly between different types and brands of servo motors (e.g. 0.5 and 2.5 ms). Many servos only rotate through about 170 degrees (or even only 90) but the middle position is almost always at 1.5 ms.

For adjusting the min and max position in the code, see the section below.

Pulses to control servo

Servo motors generally expect a pulse every 20 milliseconds or 50 Hz but many RC servos work fine in a range of 40 to 200 Hz.

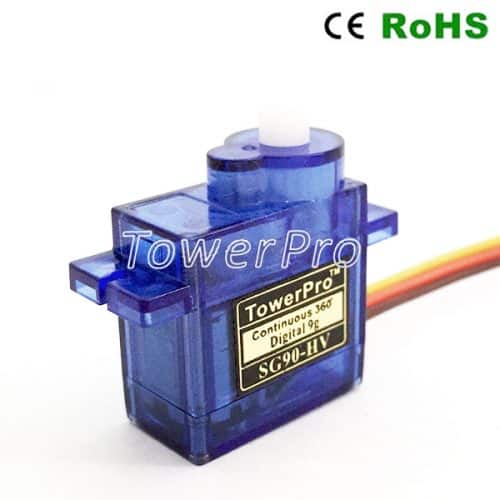

360-degree (continuous) vs 180-degree (standard) servo

Most RC servos are from the 180-degree variety, which means that they can only rotate in a range of 0 to 180 degrees. However, continuous rotation, also known as 360-degree servo motors, are also available.

Continuous rotation servos react differently to the control signal than standard 180-degree servos. With a continuous rotation servo, you can not control the exact position of the output shaft, only the speed and the direction. A 1 ms pulse will set the speed of the servo motor to full speed in one direction and a 2 ms pulse to full speed in the other. A value near 1.5 ms lets the motor stop.

If your servo behaves in an unexpected way, you might be using a continuous servo instead of a standard one.

For more information have a look a our tutorial Positional versus Continuous Servos.

How to connect a servo motor to the Arduino?

Wiring a servo motor is very easy because you only need to connect three wires: power, ground, and signal. The power wire is typically red and needs to be connected to 5 V.

A micro servo like the SG90 consumes around 10 mA when it’s idle and 100 – 250 mA when rotating, so you can power it directly with the 5 V output of the Arduino. However, you need to be careful when using multiple or larger servo motors. If your motor(s) consume more than 300 mA you should use an external power supply to avoid damaging the Arduino! See the schematic below for using external power supplies.

The ground wire is typically black or brown and should be connected to the ground pin of the Arduino. When using a separate power supply, connect the ground wire to both the Arduino and the power supply ground.

The signal wire is typically yellow, orange, or white can be connected to any of the digital pins of the Arduino. In this case, I connected it to digital pin 9.

Servo motor with Arduino Uno wiring diagram.
Servo motor with Arduino Uno wiring diagram

The connections are also given in the table below.

Servo motor connections

Servo motorArduino
Power (red)5 V
Ground (black or brown)GND
Signal (yellow, orange or white)Pin 9

As I mentioned before, if you are using large or multiple servo motors you should use an external power supply. Simply connect the power supply as shown in the wiring diagram below. Make sure to connect the GND pin of the Arduino and the power supply together.

You can also use this setup if your servo motor requires a different voltage than the Arduino can provide e.g. 6 V or higher. The following picture shows how to use an external power supply to drive the servo:

servo-motor-with-arduino-uno-and-external-power-supply-wiring-diagram-schematic-circuit-tutorial
Wiring Servo with Arduino Uno and Power supply

Connections for servo motor with external power supply

Servo motorConnection
Power (red)5 V power supply
Ground (black or brown)Power supply ground and Arduino GND
Signal (yellow, orange or white)Pin 9 Arduino

Arduino example code

To control the servo motor we will be using the Servo.h library which comes pre-installed with the Arduino IDE. With the example code below, you can control the exact position of the servo motor and it also includes code to sweep the servo arm back and forth automatically.

You can upload the example code to your Arduino via the Arduino IDE. Next, I will explain how the code works.

You can copy the code by clicking on the button in the top right corner of the code field.

/* Servo motor with Arduino example code. Position and sweep. More info: https://www.makerguides.com/ */

// Include the servo library:
#include "Servo.h"

// Create a new servo object:
Servo myservo;

// Define the servo pin:
#define servoPin 9

void setup() {
  // Attach the Servo variable to a pin:
  myservo.attach(servoPin);
}

void loop() {
  // Tell the servo to go to a particular angle:
  myservo.write(90);
  delay(1000);
  myservo.write(180);
  delay(1000);
  myservo.write(0);
  delay(1000);

  // Sweep from 0 to 180 degrees:
  for (int angle = 0; angle <= 180; angle += 1) {
    myservo.write(angle);
    delay(15);
  }

  // And back from 180 to 0 degrees:
  for (int angle = 180; angle >= 0; angle -= 1) {
    myservo.write(angle);
    delay(15);
  }
  delay(1000);
}

How the code works

The first step is to include the required Arduino library. You can also find this library under Sketch > Include Library > Servo.

// Include the servo library:
#include "Servo.h"

Next, you need to create a new object of the Servo class. In this case, I called the servo ‘myservo’ but you can use other names as well. Note that you will also have to change the name of the servo in the rest of the code.

// Create a new servo object:
Servo myservo;

After that, I defined to which Arduino pin the servo motor is connected.

// Define the servo pin:
#define servoPin 9

The statement #define is used to give a name to a constant value. The compiler will replace any references to this constant with the defined value when the program is compiled. So everywhere you mention servoPin, the compiler will replace it with the value 9 when the program is compiled.

In the setup section of the code, we link the servo object that we created to the pin that will control the servo. The attach() function also has two optional parameters, which I discuss in the section below.

void setup() {
  // Attach the Servo variable to a pin:
  myservo.attach(servoPin);
}

Control angle/position:

In the first part of the loop, we simply tell the servo motor to move to a particular angle with the function write(). Note that you need a delay between the commands to give the servo motor some time to move to the set position.

  // Tell the servo to go to a particular angle:
  myservo.write(90);
  delay(1000);
  myservo.write(180);
  delay(1000);
  myservo.write(0);
  delay(1000);

Control speed:

In the last part of the code, I used two for loops to sweep the servo motor back and forth. This piece of code can also be useful if you want to control the speed of the servo motor. By changing the delay value at the end of the for loop, you can adjust the speed of the servo arm.

  // Sweep from 0 to 180 degrees:
  for (int angle = 0; angle <= 180; angle += 1) {
    myservo.write(angle);
    delay(15);
  }
  // And back from 180 to 0 degrees:
  for (int angle = 180; angle >= 0; angle -= 1) {
    myservo.write(angle);
    delay(15);
  }

Why doesn’t my servo turn a full 0 – 180 degrees?

As I discussed in the introduction, the angle of the output shaft of the servo motor is determined by the width of the electrical pulse that is applied to the control wire. Generally, a pulse width of about 1 ms (millisecond) corresponds to the minimum position, 2 ms to the maximum position, and 1.5 ms to 90° (neutral position). However, this can vary slightly between brands and even different servos of the same brand. This means that you will have to adjust the minimum and maximum values in the code to match the servo that you are using.

The Arduino Servo library makes it very easy to tune the min and max angle of the servo motor by specifying two optional parameters in the attach() function. In this function, the first parameter is the number of the pin that the servo is attached to. The second parameter is the pulse width, in microseconds (μs), corresponding to the minimum (0-degree) angle of the servo motor. The third parameter is the pulse width, in microseconds, corresponding to the maximum (180-degree) angle of the servo motor.

By default, the min and max pulse width is set to 544 and 2400 microseconds. These values work for most common servos, but sometimes you have to adjust the values slightly.

I recommend adjusting the min and max values in small increments (10-20 microseconds) to avoid damaging the servo. If the servo arm is hitting the physical limits of the motor, increase the min value, and decrease the max value.

#define servoPin 9
int min = 480;
int max = 2500;
Servo myservo;

void setup() {
  myservo.attach(servoPin, min, max);
}

Control a servo motor with a potentiometer and Arduino

servo-motor-with-arduino-uno-and-potentiometer-wiring-diagram-schematic-circuit
Wiring diagram for controlling a servo motor with a potentiometer and Arduino.

Controlling the position of a servo motor with a potentiometer is very easy and can be very useful if you want to adjust the motor position by hand. As you can see in the wiring diagram above, the servo motor is wired in the same way as before. The only difference is that I used a breadboard to distribute the power from the Arduino.

The potentiometer has three pins, connect the outside pins to 5 V and GND. The middle pin of the potentiometer is connected to the analog pin A0 of the Arduino.

Servo motor with potentiometer Arduino example code

The example code below lets you control a servo motor with a potentiometer.

You can copy the code by clicking on the button in the top right corner of the code field.

/* Servo motor with potentiometer and Arduino example code. More info: https://www.makerguides.com/ */

#include "Servo.h" // include the required Arduino library

#define servoPin 9 // Arduino pin for the servo
#define potPin A0 // Arduino pin for the potentiometer

int angle = 0; // variable to store the servo position in degrees
int reading = 0; // variable to store the reading from the analog input

Servo myservo; // create a new object of the servo class

void setup() {
  myservo.attach(servoPin);
}

void loop() {
  reading = analogRead(potPin); // read the analog input
  angle = map(reading, 0, 1023, 0, 180); // map the input to a value between 0 and 180 degrees
  myservo.write(angle); // tell the servo to go to the set position
  delay(15); // wait 15 ms for the servo to reach the position
}

Notice that before the setup and loop section of the code a new variable reading is added and the potentiometer input pin is defined.

In the loop section of the code, we read the value from the analog pin A0 with the function analogRead().

reading = analogRead(potPin); // read the analog input

Arduino boards contain a 10-bit analog to digital converter (ADC), so this gives us a value between 0 and 1023 depending on the position of the potentiometer.

Because the servo motor can only rotate between 0 and 180 degrees, we need to scale the values down with the map() function. This function re-maps a number from one range to another.

angle = map(reading, 0, 1023, 0, 180); // map the input to a value between 0 and 180 degrees

Lastly, we write the angle to the servo motor:

myservo.write(angle); // tell the servo to go to the set position
delay(15); // wait 15 ms for the servo to reach the position

Controlling multiple servo motors

Controlling multiple servos is just as easy as controlling only one but I often get questions about how to modify the code. Therefore, I have added a simple example below.

how-to-control-multiple-servo-motors-with-arduino-wiring-diagram-schematic-circuit-tutorial-1
Multiple servo motors connected to the Arduino Uno and an external power supply.

Note that you will have to use an external power supply to power the servos because the Arduino can not provide enough current to power all of the motors.

For this example, we just use more Arduino pins for the additional servos. However, this means that you are limited to 12 servos when using an Arduino Uno, and you might not have enough pins left over for other components.

Another option is to use one or multiple PCA9685 PWM/servo drivers. This driver allows you to control 16 servos with just 2 pins from the Arduino by using I2C. Adafruit also sells these in the form of an Arduino shield.

Because the setup of these servo drivers is a bit more difficult, I will cover this in a separate tutorial.

Arduino with multiple servos example code

As you can see in the example below, you just have to create more objects of the Servo class with different names. You can address each servo by using the correct name in the setup and loop section of the code.

/* Arduino with multiple servos example code. More info: https://www.makerguides.com/ */

#include "Servo.h"

Servo servo1;
Servo servo2;
Servo servo3;
Servo servo4;
Servo servo5;

void setup()
{
  servo1.attach(9);
  servo2.attach(10);
  servo3.attach(11);
  servo4.attach(12);
  servo5.attach(13);
}

void loop()
{
  servo1.write(0);
  servo2.write(0);
  servo3.write(0);
  servo4.write(0);
  servo5.write(0);
  delay(2000);
  servo1.write(90);
  servo2.write(90);
  servo3.write(90);
  servo4.write(90);
  servo5.write(90);
  delay(1000);
  servo1.write(180);
  servo2.write(180);
  servo3.write(180);
  servo4.write(180);
  servo5.write(180);
  delay(1000);
}

Servo motor specifications

Below you can find the specifications of some of the most popular servo motors on the market. The original manufacturer of these servo motors is Tower Pro Pte Ltd. but similar models can be purchased from many other suppliers as well.

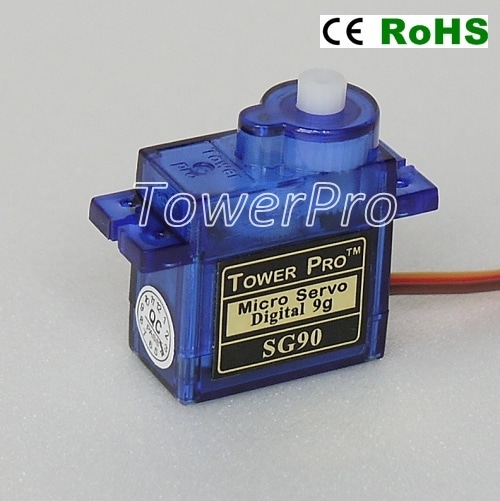

SG90 analog micro servo

tower-pro-sg90-analog-micro-servo-motor-9g-1
[Source: towerpro.com.tw]

Pinout

BrownGND
RedVCC
YellowSignal (PWM)

Specifications

Operating voltage4.8 V
Weight9 g
Stall torque1.8 kg/cm (4.8 V)
Gear typePOM gear set
Operating speed0.12 sec/60° (4.8 V)
Operating temperature0 – 55 °C
CostCheck price

Dimensions

A34.5 mm
B22.8 mm
C26.7 mm
D12.6 mm
E32.5 mm
F16 mm
sg90-micro-servo-motor-dimensions-2
[Source: towerpro.com.tw]

MG90S digital micro servo

tower pro mg90s digital micro servo
[Source: towerpro.com.tw]

Pinout

BrownGND
RedVCC
YellowSignal (PWM)

Specifications

Operating voltage4.8 V
Weight13.4 g
Stall torque1.8 kg/cm (4.8 V), 2.2 kg/cm (6.6 V)
Gear type6061-T6 aluminum
Operating speed0.10 sec/60° (4.8 V), 0.08 sec/60° (6.0 V)
Operating temperature0 – 55 °C
CostCheck price

Dimensions

A32.5 mm
B22.8 mm
C28.4 mm
D12.4 mm
E32.1 mm
F18.5 mm
sg90-micro-servo-motor-dimensions-2
[Source: towerpro.com.tw]

MG996R high torque digital servo

[Source: towerpro.com.tw]

Pinout

BrownGND
RedVCC
YellowSignal (PWM)

Specifications

Operating voltage4.8 – 6.6 V
Current draw at idle10 mA
No-load operating current draw170 mA
Stall current draw1400 mA
Weight55 g
Stall torque9.4 kg/cm (4.8 V), 11 kg/cm (6.0 V)
Gear typeMetal gear
Operating speed0.19 sec/60° (4.8 V), 0.15 sec/60° (6.0 V)
Operating temperature0 – 55 °C
CostCheck price

Dimensions

A42.7 mm
B40.9 mm
C37 mm
D20 mm
E54 mm
F26.8 mm
sg90-micro-servo-motor-dimensions-2
[Source: towerpro.com.tw]

Conclusion

In this tutorial, I have shown you how to use servo motors with Arduino. We looked at the basics of controlling the position and speed of servo motors, how to control a servo motor with a potentiometer, and how to control multiple servo motors at the same time.

I hope you found this article useful and informative. If you did, please share it with a friend who also likes electronics and making things!

I would love to know what project you plan on building or have already built with servo motors and the Arduino. If you have any questions, suggestions, or if you think that things are missing in this tutorial, please leave a comment below.

Note that comments are held for moderation to prevent spam.

Creative Commons License

Lonnie

Wednesday 21st of June 2023

Thank you for the excellent tutorial and information. My project is a pet food dispenser to feed my dog when I am away all day. The servo would, at a scheduled time, open a door to allow Jumper access to his bowl of food. I subscribe to the KISS philosophy. It's all in my head for the moment. Your tutorial really helped me with size of the servo.

Angel Paíno

Thursday 25th of May 2023

Muy interesante. Si yo quisiera, mediante una señal PWM -es decir conectando el arduino a un canal de una emisora rc- controlar que el motor gire en un sentido, hasta un final de carrera físico -mediante un microswitch- y después una vez parado, volver a ponerlo en funcionamiento, pero en sentido contrario, hasta llegar a otro final de carrera -otro microswitch-. Con ésto quiero hacer un tren de aterrizaje retràctil para un avión de radiocontrol. Gracias

Colin Telfer

Sunday 18th of September 2022

Hi Benne Good detailed explanaton on Servos, i am particularly interested in the use of the PCA9685 servo driver boards and using the servos in slow motion, any timescale on the proposed tutorial Benne? Reason i am asking is i have a model railway running JMRI which uses servos for the turnouts and other accessories (2 PCA9685 boards connected up with I2C), they need to be slowed down as the sudden movement is too harsh and unrealistic. I understand the use of Millis is required so as to not slow down the "multitasking" element of the layout, but i am not proficient enough to understand and follow this at the moment so your tutorial would be a good way to follow this. Your help on this would be really appreciated by not just myself but i would think others in the model rail fraternity. Regards Colin

raspberry robot

Saturday 23rd of July 2022

very good instructional information. this is all you need to use any servo motor with arduino.

great descriptions and illustrations

tnx

Ted Becker

Friday 29th of January 2021

The diagram in this tutorial is WRONG!

Pulse width into a SG90 is as follows

.5 mSec = 0 Degrees 1.0 mSec = 45 Degrees 1.5 mSec = 90 Degrees 2.0 mSec = 135 Degrees 2.5 mSec = 180 Degrees

The angles are approximate.

See what results you get with: myservo.writeMicroseconds(1000); myservo.writeMicroseconds(1500); myservo.writeMicroseconds(2000);

I suggest the authors actually hook up the circuit and try it out. Check the pulse width with an oscilloscope like I did.

Benne de Bakker

Friday 29th of January 2021

Hi Ted,

Thank you for your comment. As I mentioned in the article, the min (o degrees) and max (180 degrees) positions of the servo can vary between type and brand/manufacturer. Also, see the section under 'Why doesn't my servo turn a full 0 - 180 degrees?' where I explain how to adjust the min and max timing using the attach() function.

Benne
